Deep Learning OCR: Tesseract vs docTR Explained with Real-World Results

Deep learning OCR tools like docTR significantly outperform traditional engines like Tesseract, achieving up to 80–85% accuracy on complex documents. While slower, docTR’s ability to handle noisy layouts and real-world data makes it ideal for modern document processing systems.

Introduction

Optical Character Recognition (OCR) has long been a cornerstone technology in document processing pipelines. Whether you are dealing with scanned invoices, archival records, filled forms, or photographed pages, the ability to extract machine-readable text from images is fundamental to automating document workflows.

For years, Tesseract — the open-source OCR engine originally developed by HP and later maintained by Google — has been the go-to solution for developers worldwide. However, as organizations deal with increasingly complex documents, the limitations of traditional OCR approaches have become apparent. Enter docTR (Document Text Recognition), a modern deep learning-based OCR library developed by Mindee that brings computer vision and neural networks into the picture.

In this article, we explore how docTR works, how it compares with Tesseract, and what the real-world performance numbers look like when applied to a production document processing system.This shift mirrors broader advancements in AI agent memory and NLP systems, where deep learning models are enabling more context-aware and intelligent automation.

What is OCR?

Optical Character Recognition (OCR) is a technology used to extract text from images, scanned documents, and PDFs. An OCR system detects characters in images and transforms them into digital text that can be modified, searched, and edited.

Modern OCR engines work across several stages — from loading documents to identifying text regions, recognizing characters, and producing structured output. However, not all OCR engines handle these stages in the same way, and the architectural differences have a huge impact on accuracy, especially for complex real-world documents.

Tesseract OCR: The Traditional Approach

Tesseract is an open-source OCR engine that has been widely used due to its ease of use and speed. It follows a classical pipeline for text recognition, built around four primary components:

• Image Binarization — Converting the image to black and white for cleaner character boundaries
• Page Layout Understanding — Segmenting the page into blocks, paragraphs, lines, and words using Page Segmentation Models (PSM)
• Sequence Learning — Using LSTM (Long Short-Term Memory) networks to read an entire line of text as a sequence, rather than individual characters
• Language Model — Applying statistical language models to refine predictions

Tesseract’s Output Format

A notable feature of Tesseract is its structured TSV (Tab-Separated Values) output, which provides detailed layout information at multiple levels: blocks, paragraphs, lines, and words — each accompanied by bounding box coordinates. This hierarchical output is extremely useful for rule-based downstream systems that depend on spatial structure.

Limitations of Tesseract

While Tesseract works well for clean, standard documents, it struggles in several real-world scenarios:

• Poor performance on complex or distorted document layouts
• Low accuracy on low-quality or noisy images
• Limited contextual understanding of the document structure
• Works only on image-based input — does not natively support digital PDFs
• Handwriting recognition is very weak
• Accuracy on production documents with rules-based extraction was observed to be around 40–50%

docTR: A Deep Learning-Powered Alternative

docTR (Document Text Recognition) is a deep learning-based OCR library developed by Mindee. It leverages computer vision and neural networks for both text detection and text recognition. Unlike Tesseract, docTR is purpose-built to handle complex documents — including scanned PDFs, images, forms, and invoices — with a much higher degree of accuracy.

docTR uses a two-stage pipeline architecture: first detecting where text exists in the document, and then recognizing what the text says. This separation of concerns allows each stage to be optimized independently using state-of-the-art deep learning models.

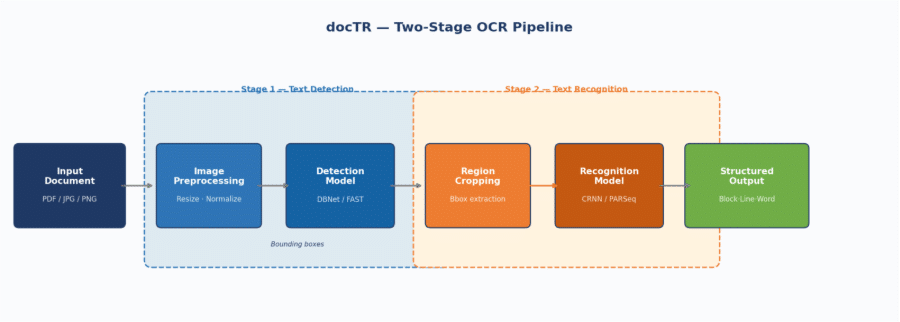

Figure 1: docTR’s two-stage OCR pipeline — Detection (DBNet/FAST) followed by Recognition (CRNN/PARSeq)

The 8-Component Pipeline of docTR

docTR’s architecture consists of eight key components, each responsible for a specific stage of the processing pipeline:

• 1. Document Loader — Supports input formats including JPEG, JPG, and PDF files
• 2. Image Preprocessing — Operations including image resizing, pixel normalization, noise reduction, and tensor conversion
• 3. Text Detection Stage — Identifies the spatial locations of text within a document using bounding boxes, powered by models such as DBNet and LinkNet
• 4. Text Region Cropping — Extracts isolated text regions from the full image for focused recognition
• 5. Text Recognition Stage — Reads characters from the cropped text regions using models like CRNN, MASTER, and SAR
• 6. Sequence Learning — Treats text as a sequence of characters, using RNNs or Transformers to capture context across the text
• 7. Decoding Layer — Converts model probability outputs into readable text using methods like CTC (Connectionist Temporal Classification) or attention-based decoding
• 8. Post-Processing — Produces structured output including blocks, lines, and words with their bounding box coordinates.

Figure 2: All 8 stages of docTR’s processing pipeline, grouped into Detection and Recognition phases

Supported Backbone Models

docTR is flexible in its choice of backbone architectures. The library supports:

• MobileNet Large — A lightweight model ideal for CPU-based deployments with moderate compute constraints
• ResNet-based variants — Heavier models offering higher accuracy for demanding use cases
• DBNet and LinkNet — For the text detection stage
• CRNN, MASTER, SAR — For the text recognition stage

Tesseract vs. docTR: A Side-by-Side Comparison

The table below summarizes the key differences between Tesseract and docTR across several important dimensions:

Feature	Tesseract OCR	docTR
Technology	LSTM-based (traditional)	Deep learning — CNN + RNN/Transformer
Speed (per page)	2–3 seconds (CPU)	7–9 seconds (CPU)
Accuracy (on real docs)	~40–50%	~80–85%
Complex Documents	Weak	Strong
Handwriting Support	Very poor	Better
Layout Understanding	Page Segmentation Models	Advanced neural detection
Digital PDF Support	No (image-based only)	Yes
Output Format	TSV (blocks, para, lines, words)	Block, lines, words + bounding boxes
Resource Usage (CPU)	Baseline	~1.5x–2x Tesseract
GPU Requirement	No	No (GPU optional but speeds up)
Framework	Open source (Google)	Open source (Mindee)

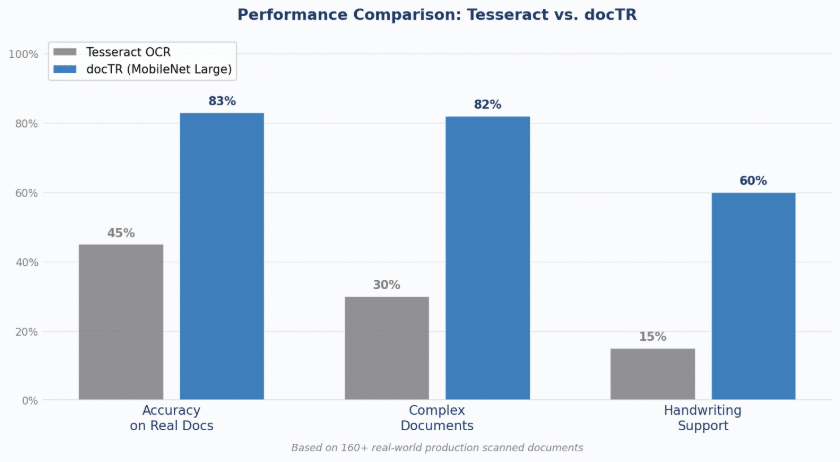

Figure 3: Accuracy comparison — Tesseract vs. docTR across key performance dimensions on 160+ real production documents

Real-World Performance: What the Numbers Say

In a real-world deployment involving 160–165 documents — predominantly non-digital, image-based scans with some distortion — the following performance characteristics were observed:

Accuracy

With the legacy Tesseract + rules-based extraction approach, accuracy was measured at approximately 40–50% against a ground truth baseline. After switching to docTR (using the MobileNet Large backbone), accuracy improved dramatically to 80–85%. This represents a roughly 2x improvement in text extraction accuracy on the same document set.

It is important to note that these numbers are document-specific and should not be treated as universal benchmarks. The tested documents were non-digital images, some of which had visible distortions — conditions under which the accuracy gap between Tesseract and docTR is particularly pronounced.

Processing Speed

Processing time was measured on CPU-only infrastructure (no GPU acceleration). For a single cluttered page with Gaussian noise:

• Tesseract: 2–3 seconds per page
• docTR (MobileNet Large): 7–9 seconds per page

The trade-off is clear: docTR is approximately 3–4x slower than Tesseract on CPU. However, this is an inherent characteristic of deep learning models performing richer analysis, and can be partially offset by GPU acceleration.

Resource Utilization

In terms of compute resource consumption, docTR with MobileNet Large (the smallest available backbone) requires approximately 1.5x the CPU limit compared to Tesseract in current testing. Migrating to heavier backbones like ResNet would further increase resource requirements.

Importantly, neither Tesseract nor docTR requires a GPU to operate. However, since docTR is a GPU-trained deep learning model, providing even a small GPU can meaningfully reduce processing time and bring the compute cost closer to Tesseract levels.

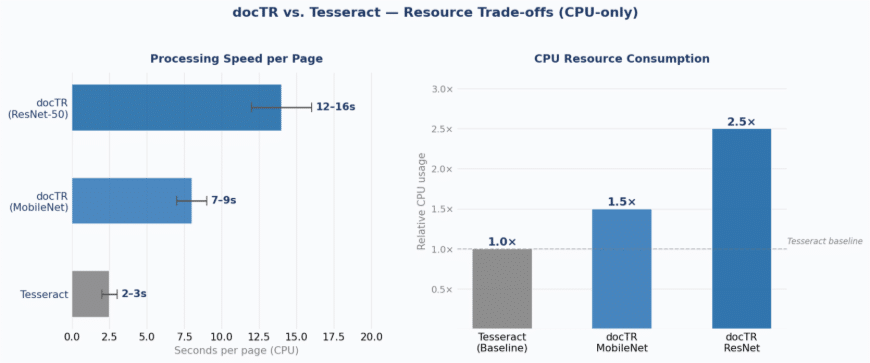

Figure 4: CPU processing speed and resource consumption — Tesseract vs. docTR backbone variants

Impact on Downstream Classification

An additional observed benefit of the improved OCR accuracy was a reduction in downstream document classification errors. Previously, many documents were misclassified due to poor or incomplete text extraction. With docTR producing higher-quality output, the classification pipeline benefited without any model-level changes.

Understanding the Output Format Difference

One practical challenge when migrating from Tesseract to docTR is the difference in output format. Tesseract uses a Page Segmentation Model approach and produces TSV output with four levels of hierarchy: blocks, paragraphs, lines, and words. Many rule-based downstream systems are built around this specific structure.

docTR, like other modern deep learning OCR systems (such as PaddleOCR and GLM-based models), uses a two-stage pipeline — separate text detection and recognition stages — and produces output at the block, line, and word level. Paragraph-level and block-level details as understood by Tesseract’s PSM are not directly available.

This architectural difference makes it non-trivial to swap Tesseract output for docTR output in an existing system without updating the downstream rules-based extraction logic. Teams should plan for this integration effort when migrating.

When Should You Use docTR?

docTR is the right choice when:

• You work with complex, real-world documents that include noisy, distorted, or poorly scanned images
• Accuracy is a higher priority than raw processing speed
• You need to handle handwritten text or semi-structured forms
• You want a framework that supports multiple state-of-the-art backbone models
• Your documents include digital PDFs in addition to image scans

Tesseract may still be the better option when:

• Processing speed and minimal resource usage are paramount
• You work with clean, high-quality, standard-layout documents
• Your downstream pipeline strictly depends on paragraph-level segmentation output

Choosing the right OCR engine, however, is only one part of the equation. Getting it running reliably at production scale — integrated with your existing document workflows, fine-tuned for your specific document types, and connected to your downstream systems — requires a different level of engineering investment.

IMPLEMENTATION PARTNER Taking docTR from Evaluation to Production Intelligent Document Processing — Powered by 47Billion

Implementing docTR in Production: Where 47Billion Fits In

The jump from a working docTR prototype to a production-grade Intelligent Document Processing (IDP) system involves more than model selection. It requires fine-tuning on your document types, integrating structured output into downstream workflows, managing compute costs, and ensuring the system holds up under real business volumes. This is precisely the kind of work that 47Billion specialises in.

47Billion is a human-first, AI-driven product engineering company with offices in California, Indore, and Bengaluru. Our AI/ML practice has deep experience turning open-source document AI tools like docTR into dependable enterprise systems — not by replacing the library, but by building the production infrastructure around it.

Industries Where 47Billion Delivers Document AI

47Billion’s IDP solutions are deployed across the industries where document processing complexity is highest and the ROI of accurate extraction is clearest:

• Healthcare: Digitising patient intake forms, prescriptions, insurance pre-authorisations, and clinical notes — where accuracy directly affects care quality
• Financial Services: Automating invoice processing, bank statement extraction, KYC document handling, and loan application digitisation enabling AI-powered document processing in financial services
• Legal and Compliance: Converting scanned contracts, case files, and regulatory filings into searchable, structured archives
• Education: Processing admissions documents, transcripts, and assessment forms at scale

The 47Billion Advantage docTR handles text extraction. 47Billion builds everything around it — the fine-tuning pipeline, the downstream extraction logic, the microservice architecture, and the business integration — so that accurate OCR translates directly into business value. Their ELEVATE framework ensures every AI implementation is strategy-first and outcome-led, not just technically functional.

If you are evaluating docTR for a production use case and want expert guidance on the full implementation, explore our AI/ML development services or get in touch directly at hello@47billion.com

Key Advantages of docTR

• Deep learning-based model offering significantly higher accuracy
• High accuracy even on complex, distorted, or non-standard documents
• Structured document output with bounding boxes at block, line, and word levels
• Open-source framework with active development and modular architecture
• Support for digital PDF input in addition to image-based documents
• Flexible backbone selection — from lightweight MobileNet to high-accuracy ResNet variants
• No GPU required for inference, though GPU support is available for acceleration

Conclusion

The evolution from Tesseract to docTR reflects a broader shift in the document intelligence landscape: deep learning models are delivering accuracy improvements that traditional approaches simply cannot match, especially at the edges of real-world complexity.

With an accuracy jump from 40–50% to 80–85% on production documents, a clean modular 8-stage pipeline, and support for diverse input formats, docTR represents a significant step forward. The trade-offs — higher processing time and increased compute requirements — are well-understood and manageable, particularly given the accuracy gains and the potential to leverage GPU acceleration.

For teams building modern document processing systems, docTR is well worth the migration investment.For teams building modern document processing systems, docTR is well worth the migration investment, especially when building scalable intelligent document processing solutions. The key is to account for the output format difference early in the integration planning, so that downstream rule-based systems can be updated to work with docTR’s two-stage pipeline output.

For organisations that want to move faster and with greater confidence, partnering with an experienced AI engineering team like 47Billion removes the guesswork — from model selection and fine-tuning through to full production deployment.

This article is based on an internal technical discussion on OCR migration from Tesseract to docTR, covering real-world performance on approximately 160+ production documents.
